HRC50 Self Centering Vise Steel Manual Precision Machine Vise

HRC50 Self Centering Vise Steel Manual Precision Machine Vise
HRC50 Self Centering Vise Steel Manual Precision Machine Vise
HRC50 Self Centering Vise Steel Manual Precision Machine Vise HRC50 Self Centering Vise Steel Manual Precision Machine Vise HRC50 Self Centering Vise Steel Manual Precision Machine Vise HRC50 Self Centering Vise Steel Manual Precision Machine Vise

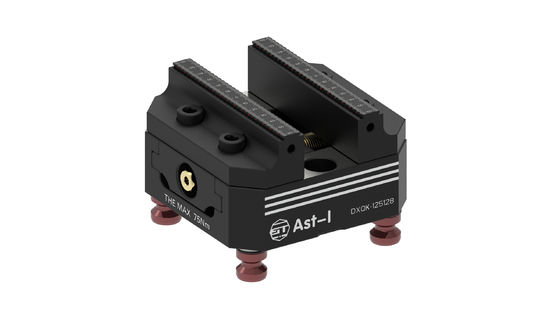

Gambar besar :  HRC50 Self Centering Vise Steel Manual Precision Machine Vise

Detail produk:
Tempat asal: Cina
Nama merek: AST
Nomor model: DXQ125128
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Kemasan rincian: kemasan karton 205*180*124mm
Waktu pengiriman: 5-8 hari kerja
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 5-7Hari kerja setelah konfirmasi pesanan
Kontak

HRC50 Self Centering Vise Steel Manual Precision Machine Vise

Deskripsi
CNC: catok 5 sumbu Bahan: Baja
Ukuran: 126x128x73.5m Torsi Maksimum: 75Nm
Fitur: Struktur pas 45° khusus dengan gigi rahang yang dapat disesuaikan: Pengguna dapat mengkalibrasi bagian tengah penjepit catok dengan menyetel sekrup di kedua ujungnya.
Menyoroti:

HRC50 Self Centering Vise

,

Self Centering Vise Steel

,

Manual Precision Machine Vise

Manual Fixture Precision 5-Axis Self Centering Vise For Cnc Milling Machine 125128

  • Significantly upgrade CNC 5-Axis Machines
  • Special 45° dovetail structure with teeth
  • The patented calibration system can regulate clamping center easily and rapidly
    • 1.Vise body is made of High quality Steel and its slideways gone through high-frequency hardening to achieve HRC50, which makes the whole part durable.
    • 2.Detachable jaws are made of High quality Tool Steel and gone through carburizing to achieve HRC55. Since both sides are fixed size and able to be used as a datum, users can reverse them to increase clamping range.
    • 3.The repeatability positioning precision of its clamping center is within 0.02mm.
    • 4.Users can calibrate the clamping center of vise by adjusting the screws on both ends.
    • 5.The 45° dovetail structure with teeth on the upper jaw ensures the bottom of the workpiece to be firmly clamped.

Product Description:



Size:126x128x73.5m
Clamping range:0-128mm
Clamp body width:125mm
Maximum torque:75Nm
Weight:6.0Kg

HRC50 Self Centering Vise Steel Manual Precision Machine Vise 0



Max opening 155mm self centering 5 axis vise

1. Material: steel.

2. Warranty:1 years

5.max clamping range:155mm

Product Name
self centering vise DXQ125128
Material
stainless steel
Used
Four-axis, five-axis, CNC indexing plate, precision machining of vertical horizontal CNC milling machine.
Advantage
Easy to use,precise clamping.

HRC50 Self Centering Vise Steel Manual Precision Machine Vise 1
HRC50 Self Centering Vise Steel Manual Precision Machine Vise 2HRC50 Self Centering Vise Steel Manual Precision Machine Vise 3
HRC50 Self Centering Vise Steel Manual Precision Machine Vise 4





Label:

Self Centering Vise,

CNC Milling Vise,

CNC Milling Vice
