Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning

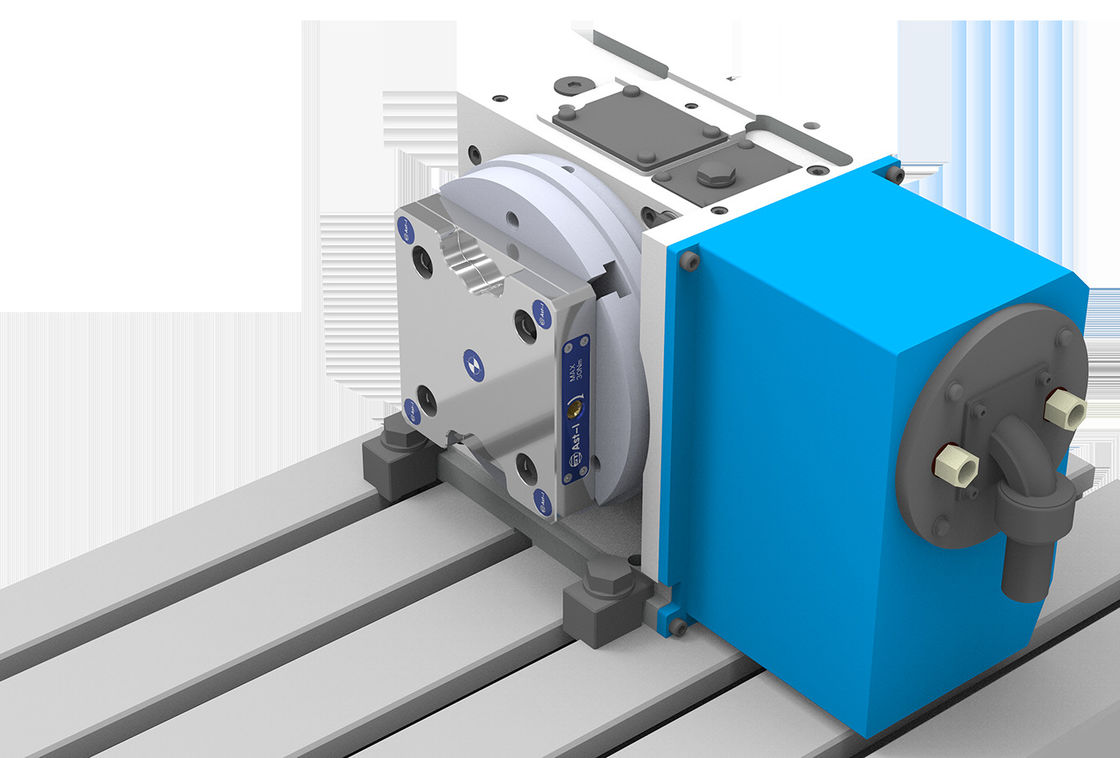

Gambar besar : Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning

Detail produk:

Tempat asal:	Cina
Nama merek:	AST
Nomor model:	SK96-190

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Kemasan rincian:	20021060mm
Waktu pengiriman:	5-8 hari kerja
Syarat-syarat pembayaran:	T/T

Kontak

Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning

Deskripsi

Nama:	perlengkapan kerja magnetik	Bahan:	Baja
Ukuran:	150x150x30mm	Pengulangan:	Dalam 0,005mm
Fitur:	pertukaran fleksibel dengan cepat	OEM:	Mendukung
Menyoroti:	Steel CNC Workholding Fixture , CNC Workholding Fixture 4 Axis , Magnetic Workholding Fixtures

Manual Zero Point Positioning Quick-Change Single Plates System For 4 Axis Cnc SK96-S190

The clamping edge of this zero-point plate allows it to be mounted on essentially all machine tables if clamps are used for this purpose.

The Quick•Point 96 variant is also popular as an interface on pallet automations or on your own customized clamping fixture.

Its mounting holes are also suitable for the Quick•Point riser made of aluminium, which can be used to improve accessibility for 5-sided machining.

No need to disassemble and calibrate time.

Maximize changeout efficiency with zero point quick exchange system

Size:150x150x30mm
Repeat position:0.005mm
Locking force:22KN (4pcs pull stud)
Material: steel
Weight:4.0Kg

Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning 0

Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning 2

Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning 3

Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning 4

Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning 6
