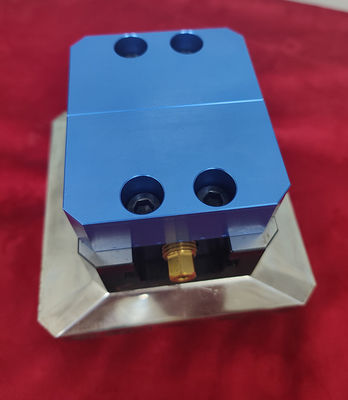

5 Axis Cnc Milling Fixtures Aluminium Jaws Clamping Fixture 75mm

5 Axis Cnc Milling Fixtures Aluminium Jaws Clamping Fixture 75mm
5 Axis Cnc Milling Fixtures Aluminium Jaws Clamping Fixture 75mm
5 Axis Cnc Milling Fixtures Aluminium Jaws Clamping Fixture 75mm 5 Axis Cnc Milling Fixtures Aluminium Jaws Clamping Fixture 75mm 5 Axis Cnc Milling Fixtures Aluminium Jaws Clamping Fixture 75mm

Gambar besar :  5 Axis Cnc Milling Fixtures Aluminium Jaws Clamping Fixture 75mm

Detail produk:
Tempat asal: Cina
Nama merek: AST
Nomor model: DXQ75100-96
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Kemasan rincian: ukuran kemasan karton 160*160*95mm
Waktu pengiriman: 5-8 hari kerja
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 5-7Hari kerja setelah konfirmasi pesanan
Kontak

5 Axis Cnc Milling Fixtures Aluminium Jaws Clamping Fixture 75mm

Deskripsi
Fitur: dengan 96 holding Cocok Untuk: sumbu 3/4/5
Bahan: Baja paduan Keakuratan Ulang: Dalam 0,02mm
Jajaran penjepit: 0-77mm bahan rahang biru: Aluminium
Menyoroti:

5 Axis Cnc Milling Fixtures

,

Cnc Milling Fixtures

,

Clamping Fixture 75mm

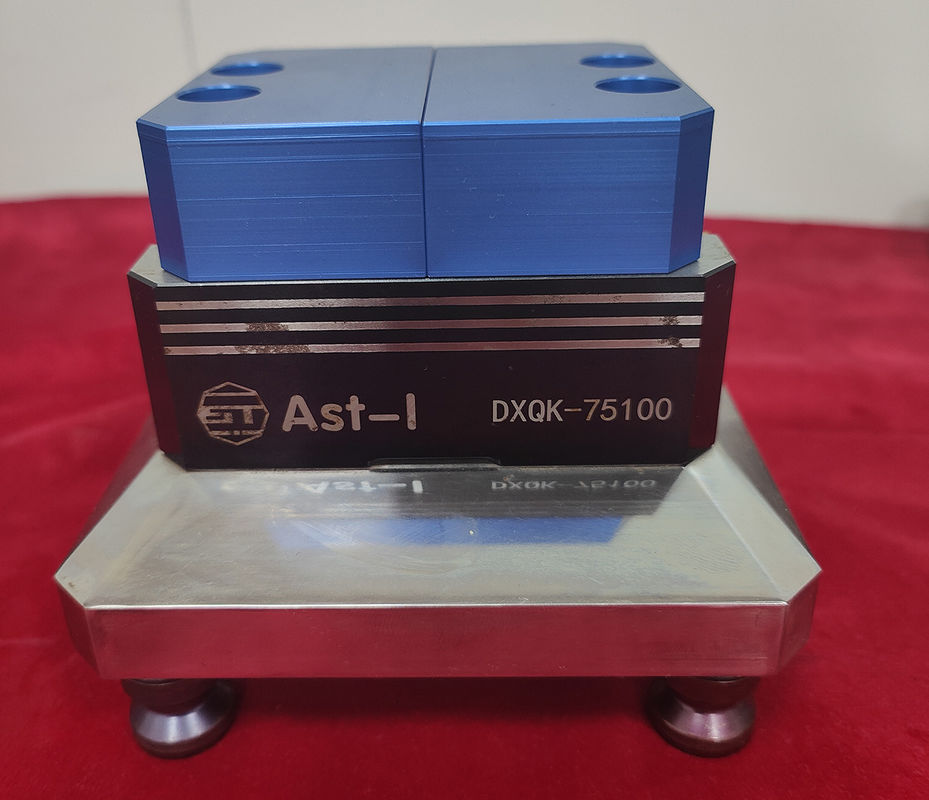

Manual Fixture 5-Axis Self Centering Vise With Aluminium Jaws For 3/4/5 Cnc Milling Machine 75100-96



Product Description:

vise size

Size: 75x100x56m
Clamping range: 0-77mm
Clamp body width: 75mm
Maximum torque: 60Nm
Weight: 2.5Kg



This vise with 96 series holding.without 96mm to 52mm Adapter!



5 Axis Cnc Milling Fixtures Aluminium Jaws Clamping Fixture 75mm 0



Max opening 155mm self centering 5 axis vise

1. Material: steel.

2. Warranty:1 years

5. max clamping range: 0-77mm

Product Name
self centering vise DXQ75100-96
Material
stainless steel
Used
Four-axis, five-axis, CNC indexing plate, precision machining of vertical horizontal CNC milling machine.
Advantage
Easy to use,precise clamping.


5 Axis Cnc Milling Fixtures Aluminium Jaws Clamping Fixture 75mm 15 Axis Cnc Milling Fixtures Aluminium Jaws Clamping Fixture 75mm 25 Axis Cnc Milling Fixtures Aluminium Jaws Clamping Fixture 75mm 35 Axis Cnc Milling Fixtures Aluminium Jaws Clamping Fixture 75mm 4
5 Axis Cnc Milling Fixtures Aluminium Jaws Clamping Fixture 75mm 5
 5 Axis Cnc Milling Fixtures Aluminium Jaws Clamping Fixture 75mm 65 Axis Cnc Milling Fixtures Aluminium Jaws Clamping Fixture 75mm 75 Axis Cnc Milling Fixtures Aluminium Jaws Clamping Fixture 75mm 85 Axis Cnc Milling Fixtures Aluminium Jaws Clamping Fixture 75mm 9
