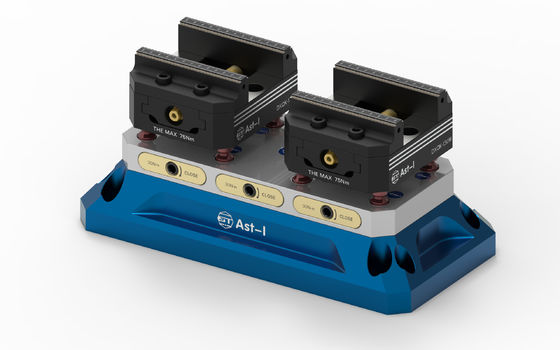

Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture

Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture
Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture
Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture

Gambar besar :  Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture

Detail produk:
Tempat asal: Cina
Nama merek: AST
Nomor model: DXQ150250
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Kemasan rincian: kemasan karton 205*180*124mm
Waktu pengiriman: 5-8 hari kerja
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 5-7Hari kerja setelah konfirmasi pesanan
Kontak

Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture

Deskripsi
CNC: catok 5 sumbu Model: 150250
Ukuran: 150x250x94m Bahan: Baja paduan
menyediakan pra-penjualan: menyediakan file 3d Warna: Hitam
Menyoroti:

240mm Axis Fixtures

,

Axis Fixtures 100Nm

,

Stainless Steel 5 Axis Fixture

 Compact Multi-Power 5-Axis Self Centering Vise For Cnc Milling Machine 150250

  • Extremely High Accuracy and Repeatability
  • Special MULTI-POWER design enhances clamping force of 5000KG
  • Suitable for CNC 5-Axis Machining Centers, horizontal and vertical CNC Machining Centers
    • 1. Compact design with big jaw opening, which enhances machine space utilization.
    • 2. Vise jaws are made of High quality Tool Steel and Hardened to achieve HRC 55 , which makes vise clamp the workpieces easily and firmly.
    • 3. Vise body is made of alloy steel and its slideways are hardened to HRC 52 , which makes the vise tensile strength with high precision accuracy.
    • 4. The patented MULTI-POWER SYSTEM is built of high grade BEARING STEEL which doubles the clamping force. Adjustable clamping force 5000kg. With this special patented system the pressure is more consistent and eliminates oil leakage and maintenance problems associated with Hydraulic Vises.
    • 5. Special Leadscrew Covers protect Leadscrew from swarf and avoid any possible damage to internal parts.

Product Description:



Size: 150x250x94m
Clamping range: 0-240mm
Clamp body width: 150mm
Maximum torque: 100Nm
Weight: 16Kg

Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture 0



Max opening 155mm self centering 5 axis vise

1. Material: steel.

2. Warranty: 1 years

5. max clamping range: 155mm

Product Name
self centering vise DXQ150250
Material
stainless steel
Used
Four-axis, five-axis, CNC indexing plate, precision machining of vertical horizontal CNC milling machine.
Advantage
Easy to use,precise clamping.



Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture 1Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture 2Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture 3Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture 4Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture 5Compact 240mm Axis Fixtures 100Nm Stainless Steel 5 Axis Fixture 6





Label:

Axis Fixtures,

Cnc Turning Fixtures,

Cnc Axis Fixtures
