Cnc Small Machining Fixture Clamps Zero Point Positioning Manual

Cnc Small Machining Fixture Clamps Zero Point Positioning Manual
Cnc Small Machining Fixture Clamps Zero Point Positioning Manual
Cnc Small Machining Fixture Clamps Zero Point Positioning Manual Cnc Small Machining Fixture Clamps Zero Point Positioning Manual Cnc Small Machining Fixture Clamps Zero Point Positioning Manual

Gambar besar :  Cnc Small Machining Fixture Clamps Zero Point Positioning Manual

Detail produk:
Tempat asal: Cina
Nama merek: AST
Nomor model: SK96-190
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Kemasan rincian: 200*210*60mm
Waktu pengiriman: 5-8 hari kerja
Syarat-syarat pembayaran: T/T
Kontak

Cnc Small Machining Fixture Clamps Zero Point Positioning Manual

Deskripsi
Nama: Klem Perlengkapan Kecil Bahan: Baja
Ukuran: 150x150x30mm Pengulangan: Dalam 0,005mm
Fitur: pertukaran fleksibel dengan cepat OEM: Mendukung
Menyoroti:

Machining Fixture Clamps

,

Machining Fixture Clamps Positioning

,

Cnc Small Fixture Clamps

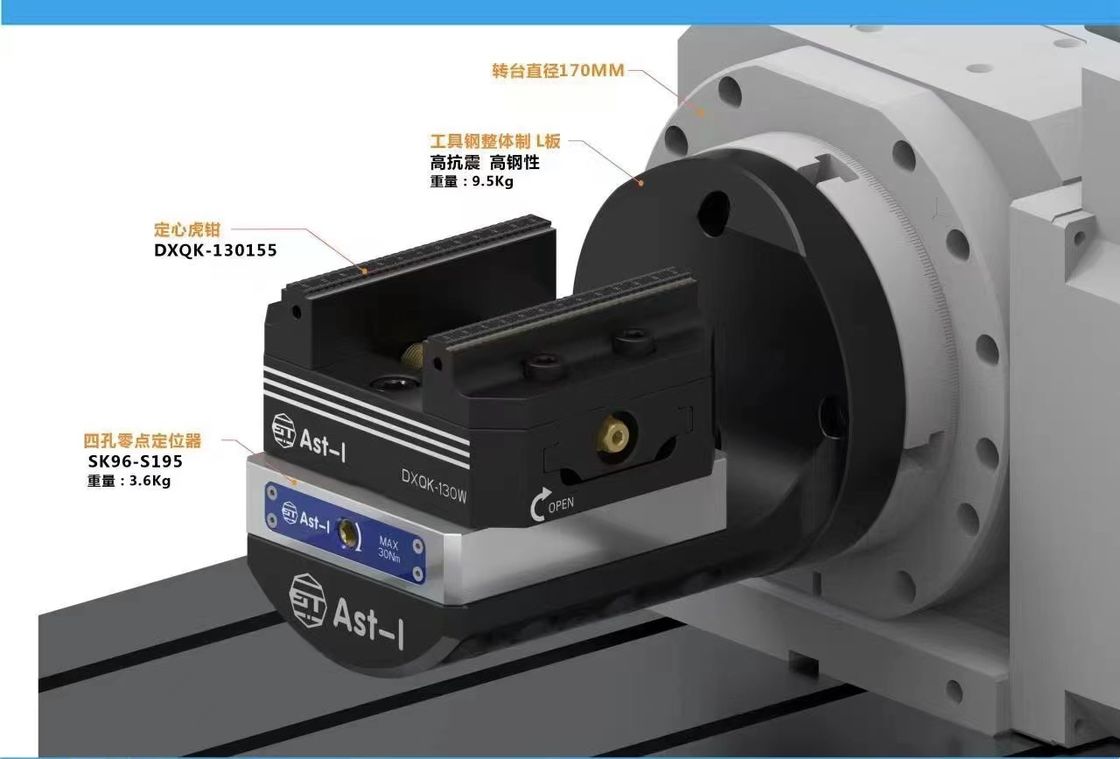

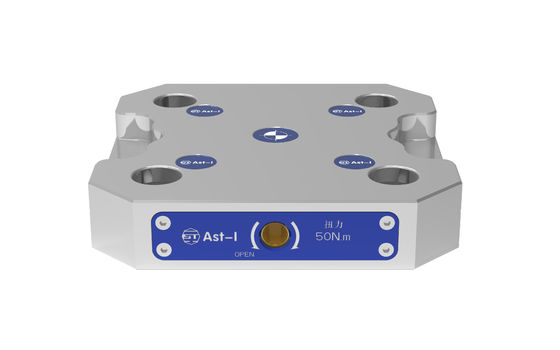

Manual Zero Point Positioning Quick-Change Single Plates System For 4 Axis Cnc SK96-S190



The clamping edge of this zero-point plate allows it to be mounted on essentially all machine tables if clamps are used for this purpose.

The Quick•Point 96 variant is also popular as an interface on pallet automations or on your own customized clamping fixture.

Its mounting holes are also suitable for the Quick•Point riser made of aluminium, which can be used to improve accessibility for 5-sided machining.


No need to disassemble and  calibrate time.



Maximize changeout efficiency with zero point quick exchange system



Size:150x150x30mm
Repeat position:0.005mm
Locking force:22KN (4pcs pull stud)
Material: steel
Weight:4.0Kg



Cnc Small Machining Fixture Clamps Zero Point Positioning Manual 0Cnc Small Machining Fixture Clamps Zero Point Positioning Manual 1

Cnc Small Machining Fixture Clamps Zero Point Positioning Manual 2

Cnc Small Machining Fixture Clamps Zero Point Positioning Manual 3

Cnc Small Machining Fixture Clamps Zero Point Positioning Manual 4Cnc Small Machining Fixture Clamps Zero Point Positioning Manual 5

Cnc Small Machining Fixture Clamps Zero Point Positioning Manual 6Cnc Small Machining Fixture Clamps Zero Point Positioning Manual 7
