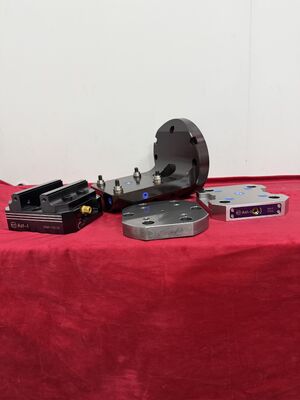

Zero Point Fixture SK96-205
Advanced clamping solution delivering precision within 0.005mm repeatability for enhanced machining efficiency and productivity.
Product Overview
The AST SK96-205 Zero Point Fixture is engineered for exceptional precision and rapid setup in machining applications. This high-performance clamping system guarantees positioning accuracy within 0.005mm and can be installed in under 5 minutes, significantly reducing downtime during tooling changes.
Key Features
- Exceptional repeatability within 0.005mm positioning accuracy
- Rapid installation and setup in less than 5 minutes
- Specifically designed for 4-axis machining operations
- Flexible exchange capability for quick workpiece changes
- Compatible with 5-axis clamping systems and self-centering vises
- Robust construction with 1-5 year lifespan depending on usage
- Typical weight range: 5-20 kg for versatile integration
Technical Specifications
| Brand |
AST |
| Model |
SK96-205 |
| Repeatability |
Within 0.005mm |
| Setup Time |
Less than 5 minutes |
| Weight Range |
5-20 kg |
| Lifespan |
1-5 years |
| Clamping Type |
Single clamping type adjustable milling vise |
| Accuracy |
0.01mm |
Applications
The SK96-205 Zero Point Fixture excels in precision manufacturing environments including aerospace component production, automotive part machining, mold and die manufacturing, and precision engineering. Its compatibility with 4-axis vises, 5-axis clamping systems, and self-centering vises makes it ideal for complex multi-axis machining operations requiring tight tolerances and consistent results.
Customization Options
Customize your Zero Point Fixture with AST to perfectly match your specific machining requirements. The system includes 4 pull studs and can be tailored to enhance performance in CNC zero point applications and adjustable milling vise setups.
Support & Services
Comprehensive technical support including installation guidance, troubleshooting, maintenance advice, and software updates. Access detailed manuals, training resources, and instructional videos through our online support portal to maximize your fixture's performance.
Packing & Shipping
Each unit is securely packaged in custom-molded foam within sturdy corrugated cardboard boxes to ensure maximum protection during transit. Shipping via reliable carriers with tracking options available. Insured shipping recommended for added protection.
Frequently Asked Questions
What is the brand and model number of the Zero Point Fixture?
Manufactured by AST, model number SK96-205.
What is the primary purpose of the AST SK96-205 Zero Point Fixture?
Provides quick and precise workpiece positioning and clamping for CNC machining centers, improving efficiency and accuracy.
Is the AST SK96-205 compatible with all CNC machines?
Compatible with most CNC machining centers supporting zero point clamping systems. Check machine specifications for compatibility.
How does the Zero Point Fixture improve machining operations?
Reduces setup time with fast, repeatable workpiece changes, enhancing precision and productivity.
What materials can be used with the AST SK96-205 Zero Point Fixture?
Suitable for clamping metals including aluminum, steel, titanium, and various plastics commonly used in CNC machining.
