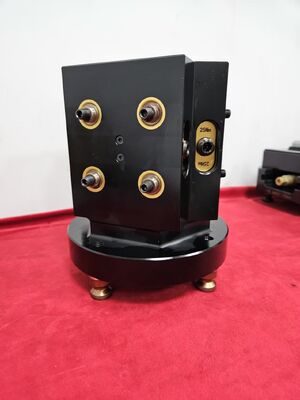

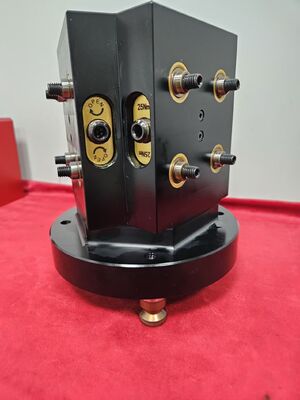

18KN Locking Force 5 Axis Clamping System
This innovative zero point fixture ensures cycle time reduction up to 80% for complex component machining, providing reliable and repeatable clamping for CNC operations.
Product Overview
The Zero Point Fixture is an efficient solution designed to enhance precision, speed, and flexibility in CNC machining operations. Engineered for reliable and repeatable clamping, this system is ideal for manufacturing environments requiring quick setup times and superior accuracy.
Key Specifications
| Model |
AST SK96-205 |
| Locking Force |
18KN |
| Accuracy |
0.01mm |
| Repeatability |
0.005mm |
| Dimensions |
208 × 106 × 25mm |
| Weight Range |
5-20 kg |
| Lifespan |
1-5 years |
Key Features
- Robust 18KN locking force for maximum stability
- 0.01mm accuracy for high-precision machining
- Single clamping design for quick tool changes
- Includes four pull studs for secure attachment
- Compatible with 3, 4, and 5-axis CNC workingships
- Works with adjustable milling vises and aluminum vise jaws
- Compact dimensions for versatile applications
Applications
The AST SK96-205 Zero Point Fixture is essential for precision CNC machining across various industries including aerospace, automotive, and medical device manufacturing. Its compatibility with multiple axis configurations makes it versatile for:
- Batch production and prototyping
- Complex 5-axis machining operations
- Quick workpiece changeover scenarios
- High-volume production runs
- Dovetail fixture CNC setups
Customization Services
The AST Zero Point Fixture SK96-205 offers comprehensive customization services tailored to specific manufacturing needs. Our adaptable design supports integration with aluminum vise jaws and 5th axis self-centering vises for enhanced versatility in advanced manufacturing environments.
Support & Services
We provide complete technical support including installation guidance, troubleshooting, maintenance tips, and replacement parts information. Our authorized service centers ensure genuine parts and expert handling, with training sessions available to maximize productivity and minimize downtime.
Packing & Shipping
Each unit is securely packaged in custom-molded foam within double-walled cardboard boxes for maximum protection. We use eco-friendly, recyclable materials and reliable carriers with tracking options. Customers are advised to inspect packaging upon receipt and report any issues immediately.
Frequently Asked Questions
What is the AST Zero Point Fixture model SK96-205 used for?
Precise and quick workpiece clamping in machining centers, improving setup times and ensuring repeatability in manufacturing processes.
How does the AST SK96-205 improve machining efficiency?
By enabling rapid and accurate workpiece changeover, reducing machine downtime, enhancing positioning accuracy, and streamlining production workflow.
Is the fixture compatible with standard CNC machine tables?
Yes, the SK96-205 is designed to be compatible with most standard CNC machine tables for various machining applications.
What materials are suitable for use with this fixture?
Suitable for metals including aluminum, steel, and titanium, as well as plastics, depending on machining requirements.
